The K44 has a great CW reader but one thing that slows most folks down is connecting audio from their receiver to the K44's audio input. K1EL recommends getting audio from the receiver's audio line output jack which, in most cases, is located on the back of the radio. Usually it's in a multi-pin DIN accessory connector, which is certainly not very convenient. The reason the line out works so well is that it is a high impedance output, which matches the K44 audio input, and it is unaffected by the radio's AF gain control. You can turn the AF gain control up and down and K44 copy is unaffected.

The next best option is to plug into the radio's external speaker jack. There are two problems with this, the first is that it is a low impedance output, usually 8 ohms. The second is as soon as you plug something into the external speaker jack the radio's internal speaker is muted. Our recommendation, up to now, has been is to make up a Y cable but that doesn't solve the impedance mismatch. To solve this once and for all, we designed an audio splitter kit which takes the place of a Y cable and also solves the impedance mismatch problem. Unfortunately it doesn't solve the gain changing issue but it's a good compromise.

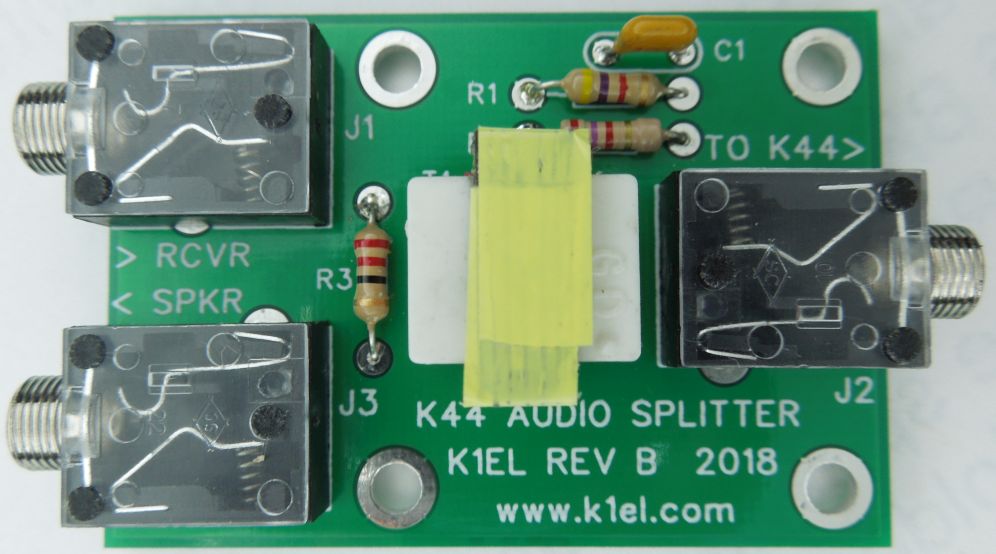

The K44 Splitter board has three 1/8 inch jacks, one jack goes to your radio's external speaker jack, a second one goes to you exernal speaker, and a third goes to the K44's audio input jack. Use two of our 1/8 inch to 1/8 inch audio cables as shown below and you are all set.

K44-Splitter Features

K44-Splitter Documentation
K44-SPLT Audio Splitter Manual Rev A.1
K44 Audio Splitter Kit
K44-Splitter Kit
$16.00 USD

Includes 1/8" to 1/8"
3 foot cable
