K1EL Systems LLC

RigPi CW Board 2
Assembled and Tested
RigPi CW Board 2
$59.00 USD
K1EL Systems is now offering a RigPi CW board. We are calling it the CW Board 2 since it is not drop in compatible with the original MFJ RigPi CW board. Instead it has been designed to fit in the K1EL RigPi 2 enclosure which is 3D printed using a design that can be downloaded from Thingiverse. K1EL will be offering a limited number of printed enclosures for sale to those who do not have access to a 3D printer. Just add your own Raspberry PI 4 and the RigPi sofware image from https://rigpi.net/ The K1EL enclosure includes accomodations for a cooling fan and easy access to the micro SD card on the Raspberry PI.

RigPi Cw Board 2 Features


CW Board 2 Documentation

RigPi Cw Board 2 Product Brief

RigPi2 Enclosure Manual with CW board schematic

Page 1 CPU
Page 2 I/O

Link for Rig Pi2 3D Enclosure .stl files on Thingiverse:

https://www.thingiverse.com/thing:6843234

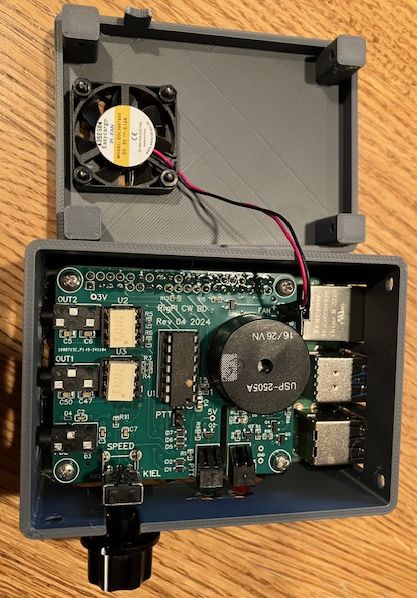

Pictures of Enclosure Assembly Procedure

The Enclosure Kit includes 3D printed top and bottom along with the Enclosure Parts kit.

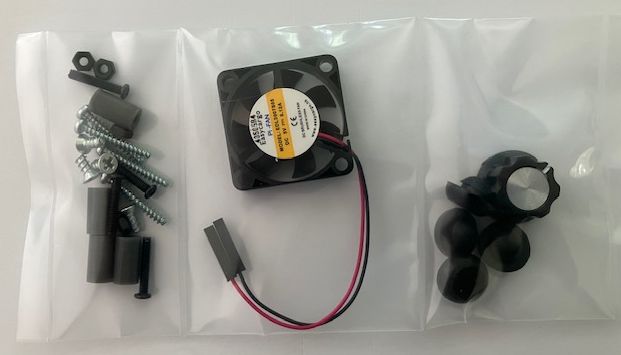

A parts kit contains: Four each: .72” board screws, .25” lid screws, plastic spacers, rubber feet, fan screws & fan nuts.
One each: Cooling fan and Speed control knob. Note: the fans screws and nuts are quite small and easily lost.
This kit is intended for those who print their own enclosure and need the miscellaneous parts.


Home



Keyer Kits



ICs



Radios



PIC Tools



Software



Videos



Deals



Information

Contact Us
Documentation
Frequently Asked Questions
Privacy Policy
About Us


Customer Service

Terms and Conditions
Return & Repair Policy
Ordering Info
Shipping Methods
Connections

Copyright 2000-2025 K1EL Systems LLC
Bluesky: @K1ELsys.bsky.social
News: K1EL Systems Blog
Help: K1EL on Groups.io


Enclosure Kit
$19.00 USD
Enclosure Parts Kit
$9.00 USD
